Brake Line Flaring Tool
Description
A Brake Line Flaring Tool is a hand tool used to create flared ends on brake pipes or tubes for secure connections in hydraulic brake systems. It forms precise flares such as single, double, or bubble flares, ensuring leak-proof joints. This tool is essential in automotive repair and maintenance for fabricating and replacing brake lines.
Uses
- Creating flared ends on brake pipes.
- Ensuring leak-proof connections in brake systems.
- Repairing and replacing brake lines.
- Used in automotive and hydraulic systems.
- Fabrication of metal tubing connections.

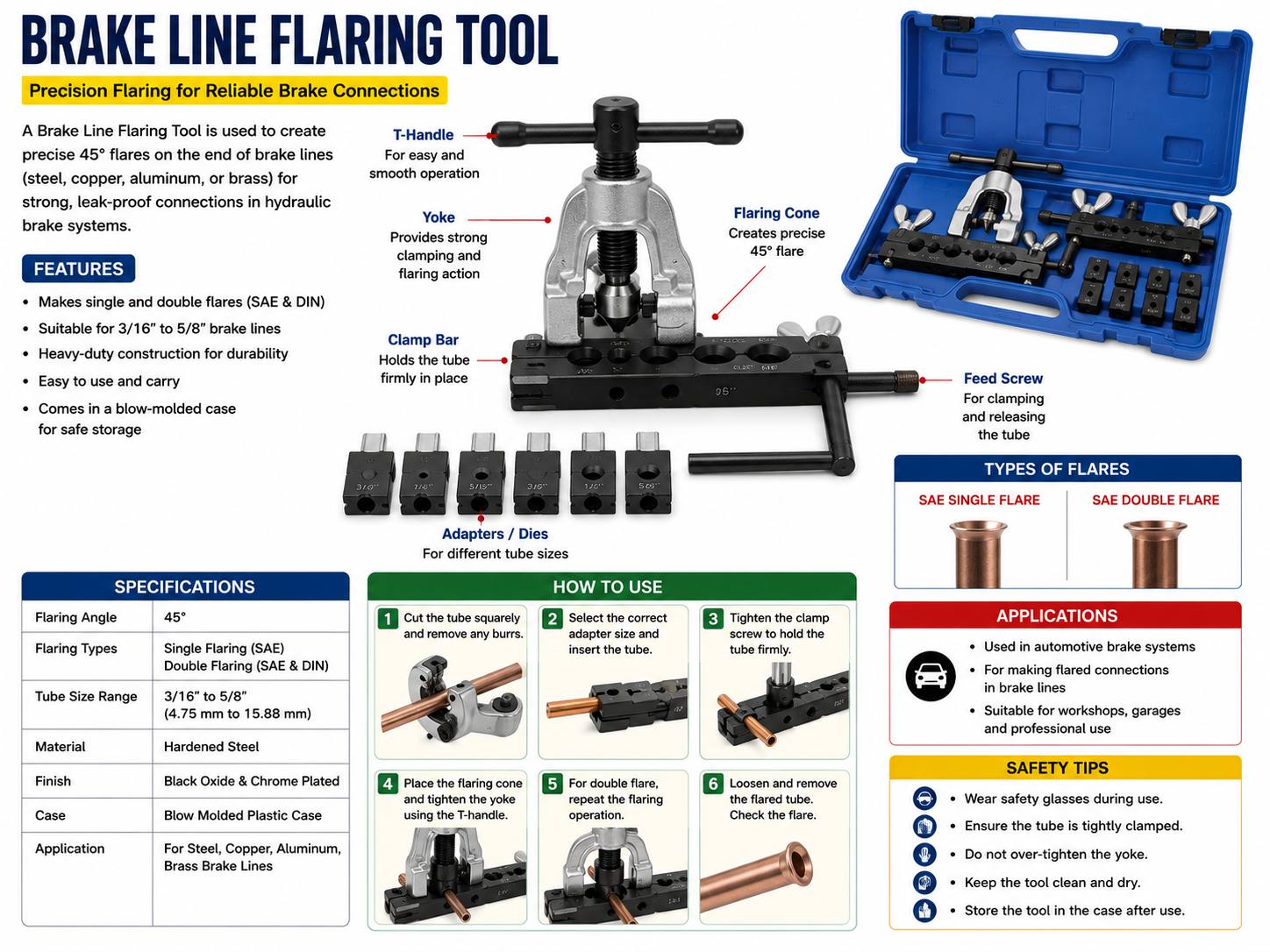

Parts of Brake Line Flaring Tool
- Clamp Bar: Holds the tube securely.
- Flaring Cone: Forms the flare shape.
- Yoke/Frame: Supports the flaring mechanism.
- Handle/Screw: Applies pressure to form the flare.
- Dies: Used for different flare sizes and types.
Material
- Hardened steel body
- Alloy steel dies
- Heat-treated screw mechanism
Shape
A Brake Line Flaring Tool typically consists of a clamp bar with multiple holes for different tube sizes and a yoke with a threaded screw and cone. The design allows controlled pressure to form precise flares on tubing ends.
Safety Precautions
- Ensure proper clamping of the tube.
- Use correct die size for the tubing.
- Apply pressure gradually.
- Wear safety gloves and goggles.
- Inspect tool before use.
Conclusion
The Brake Line Flaring Tool is an essential hand tool for creating secure and leak-proof brake line connections. It ensures safety and reliability in automotive brake systems.
