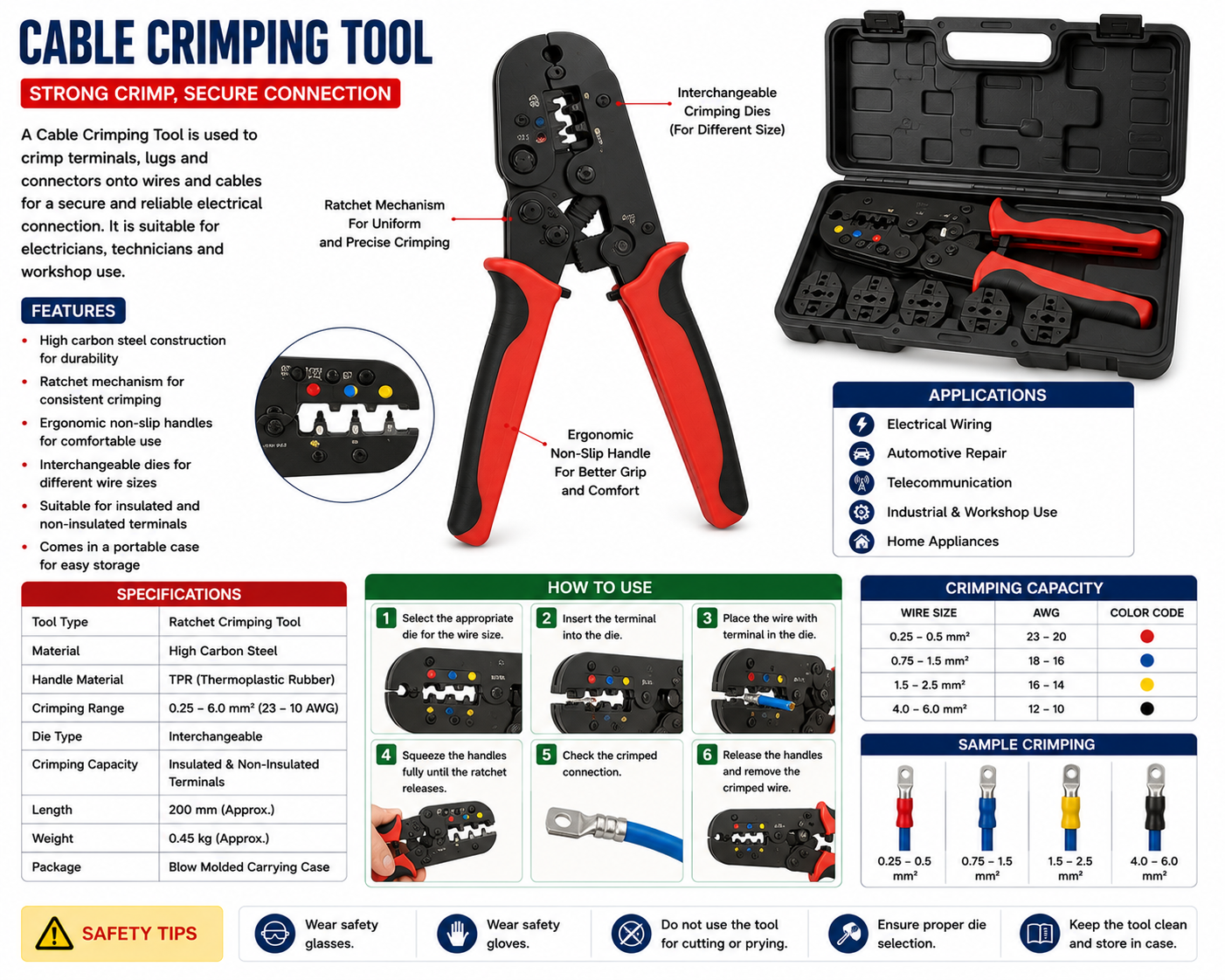

Cable Crimping Tool
Description
A Cable Crimping Tool is a hand tool used to join connectors to electrical cables by deforming the connector securely onto the conductor. It ensures a strong electrical and mechanical connection without the need for soldering. This tool is widely used by electricians for wiring, installation, and maintenance work.
Uses
- Crimping terminals and connectors onto cables.
- Creating secure electrical connections.
- Used in wiring and installation work.
- Repair and maintenance of electrical systems.
- Used in domestic and industrial applications.
Parts of Cable Crimping Tool
- Crimping Jaws: Compress the connector onto the cable.
- Handles: Provide grip and leverage.
- Ratchet Mechanism: Ensures proper crimping pressure.
- Adjustment Screw: Adjusts crimping force.
- Insulated Grip: Provides safety and comfort.
Material
- Hardened steel jaws
- Alloy steel body
- Plastic or rubber insulated handles
Shape
A Cable Crimping Tool has a plier-like design with specially shaped jaws for crimping connectors. It includes long handles for applying sufficient force and may have a ratchet mechanism for controlled operation.
Safety Precautions
- Use the correct die size for the connector.
- Ensure the cable is properly inserted before crimping.
- Do not use excessive force.
- Wear insulated gloves when working with live circuits.
- Inspect the tool regularly for damage.
Conclusion
The Cable Crimping Tool is an essential hand tool for electricians, providing reliable and secure cable connections. It improves safety, efficiency, and durability in electrical installations.
