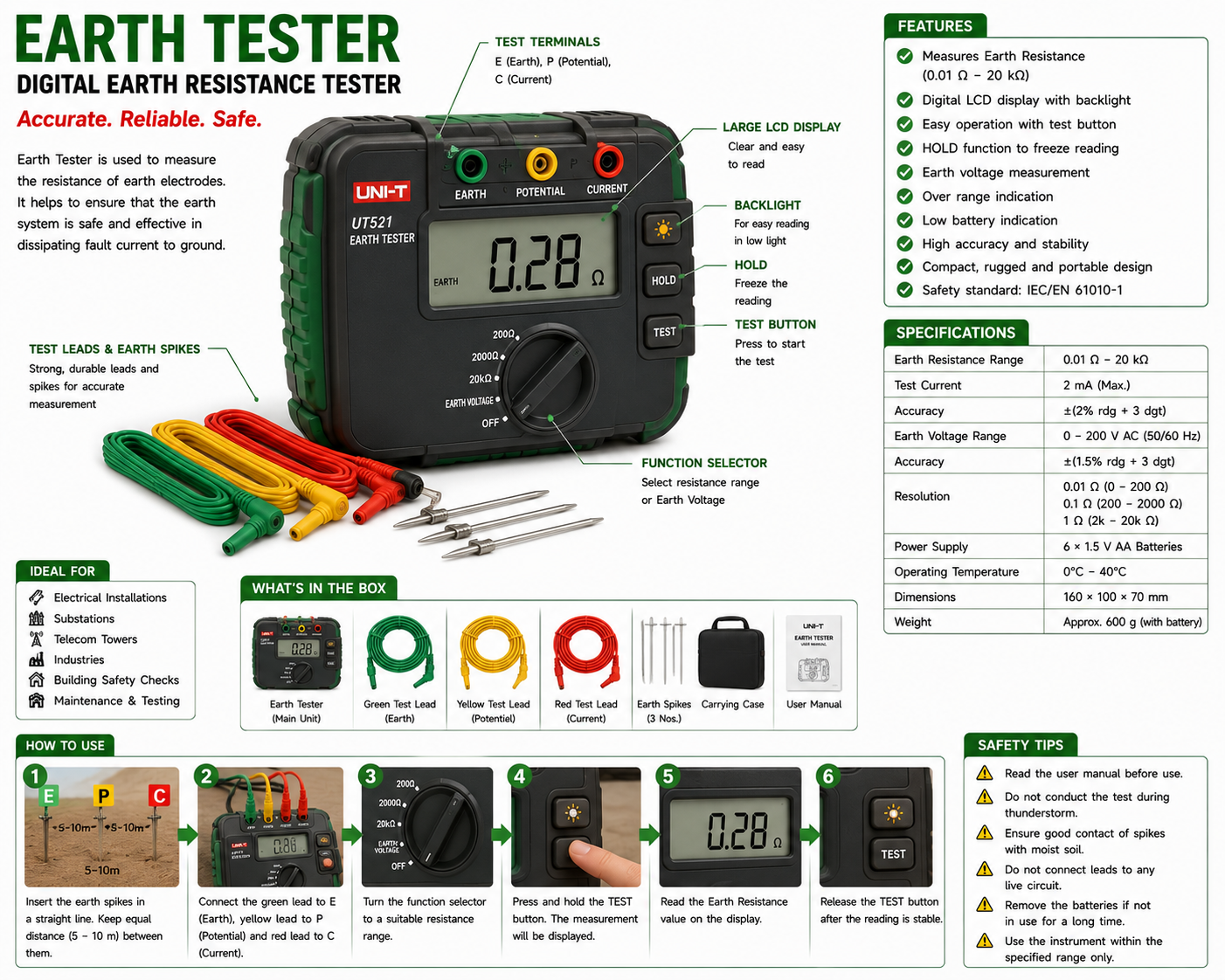

Earth Tester
Description
An Earth Tester is an electrical testing instrument used to measure the resistance of an earthing system. It ensures that the grounding system is effective and safe for electrical installations. It is widely used in electrical maintenance and installation work.
Parts
- Display: Shows earth resistance readings.
- Test Leads: Connect the tester to electrodes.
- Control Knob/Switch: Selects measurement range.
- Probes/Electrodes: Inserted into the ground for testing.
- Internal Circuit: Measures resistance values.
Material
- Plastic Insulated Body
- Electronic Components
- Copper Test Leads
Uses
- Measuring earth resistance
- Checking grounding systems
- Ensuring electrical safety
- Installation and maintenance work
Safety
- Ensure proper connection before testing.
- Do not use in wet or unsafe conditions.
- Handle test leads carefully.
- Follow correct testing procedure.
- Store properly after use.
