Clamp Meter
Description
A Clamp Meter is a testing instrument used to measure electrical current without directly contacting the conductor. It uses a clamp jaw to detect the magnetic field around a current-carrying wire, allowing safe and convenient measurement. Clamp meters are widely used by electricians for troubleshooting and maintenance of electrical systems.
Uses
- Measuring AC and DC current.
- Checking load and current flow in circuits.
- Troubleshooting electrical faults.
- Measuring voltage, resistance, and continuity (in advanced models).
- Used in electrical maintenance and inspection.

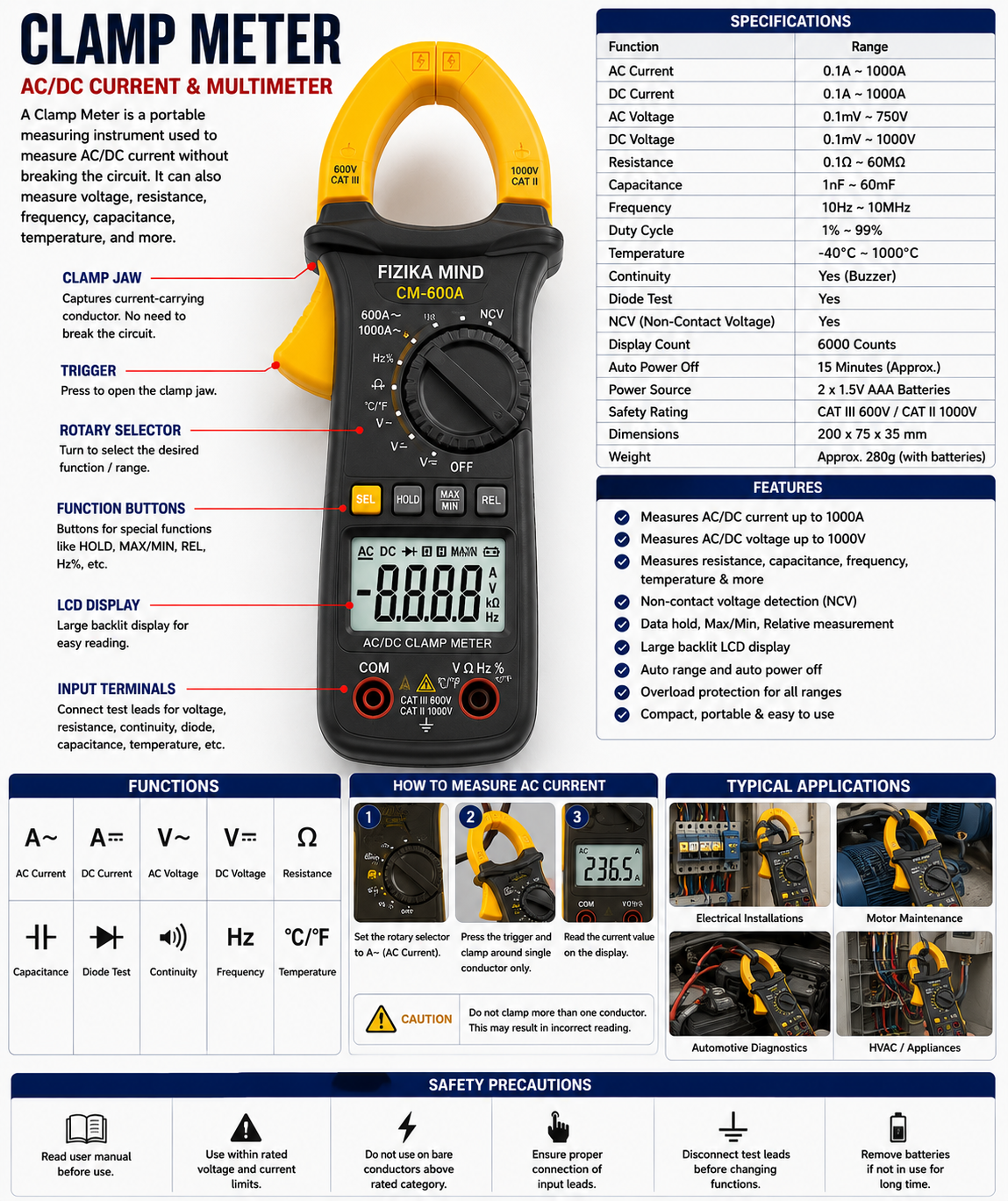

Parts of Clamp Meter
- Clamp Jaw: Measures current through magnetic field.
- Display Screen: Shows readings.
- Selector Switch: Selects measurement type.
- Test Leads: Used for voltage and resistance measurement.
- Buttons/Controls: Operate functions.
Material
- Plastic insulated body
- Electronic circuits and sensors
- Metal clamp core
- Digital display components
Shape
A Clamp Meter has a handheld design with a hinged clamp at the top and a display unit below. It is compact and portable, making it suitable for field and workshop use.
Safety Precautions
- Do not measure beyond rated capacity.
- Ensure proper insulation of wires.
- Use correct measurement mode.
- Wear protective gear when necessary.
- Inspect the meter before use.
Conclusion
The Clamp Meter is an essential electrical testing instrument for safe and efficient current measurement. It improves troubleshooting accuracy and ensures safety in electrical work.
