Brinell Hardness Tester
Description
A Brinell Hardness Tester is a testing instrument used to determine the hardness of materials by measuring the size of an indentation made by a hardened steel or carbide ball under a specified load. It is widely used in workshops and laboratories to test metals such as steel, cast iron, and non-ferrous materials. The Brinell method provides reliable results for materials with coarse or uneven structures.
Uses
- Measuring hardness of metals and alloys.
- Testing material strength and resistance.
- Quality control in manufacturing processes.
- Inspection of castings and forgings.
- Used in mechanical and metallurgical testing.

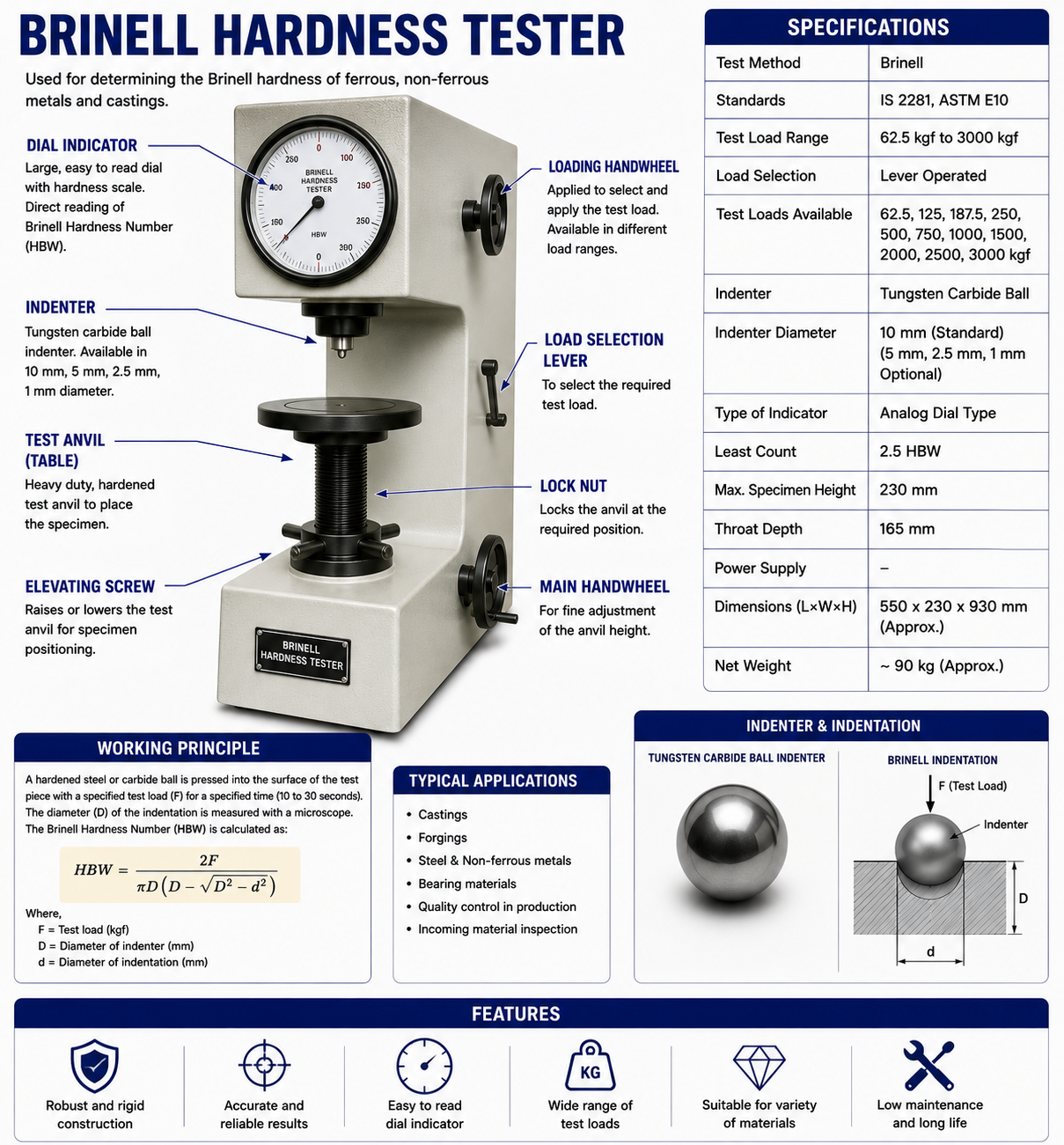

Parts of Brinell Hardness Tester
- Indenter (Ball): Hardened steel or carbide ball used to create indentation.
- Load Mechanism: Applies force on the specimen.
- Anvil: Supports the test specimen.
- Measuring Microscope/Scale: Measures indentation diameter.
- Frame: Provides structure and stability.
Material
- Steel or cast iron body
- Carbide or hardened steel indenter
- Precision measuring components
Shape
A Brinell Hardness Tester is typically a heavy machine with a vertical frame, a loading mechanism, and a base for placing the test specimen. It includes a measuring device to evaluate the indentation made on the material.
Safety Precautions
- Ensure proper placement of the specimen.
- Do not exceed specified load limits.
- Handle measuring instruments carefully.
- Keep hands clear during operation.
- Calibrate regularly for accurate results.
Conclusion
The Brinell Hardness Tester is an important testing instrument used for determining material hardness. It provides accurate and reliable results, making it essential in quality control and material testing applications.
