Arbor Press
Description
An Arbor Press is a manually operated workshop machine used for pressing, fitting, and assembling components with controlled force. It works using a rack and pinion mechanism to apply pressure through a ram. Arbor presses are commonly used in fitting shops for operations such as inserting bearings, bushings, and other small parts. It provides high precision and control compared to hammering methods.
Uses
- Pressing bearings, bushings, and shafts into position.
- Assembly and disassembly of small mechanical components.
- Punching, staking, and riveting operations.
- Removing or inserting dowel pins.
- Light bending and forming work.

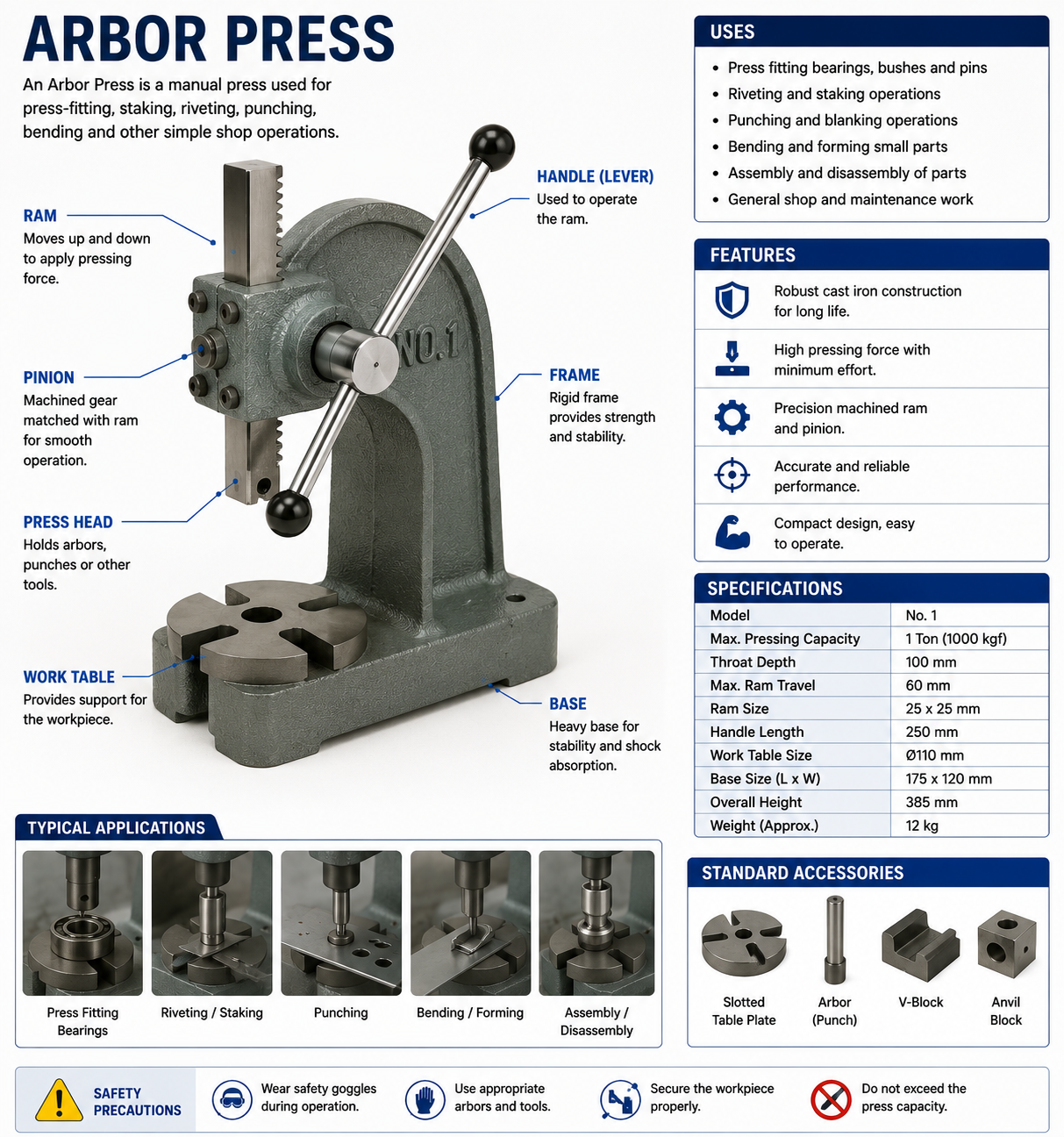

Parts of Arbor Press
- Frame: Provides support and rigidity to the machine.
- Ram: Moves vertically to apply pressure.
- Rack and Pinion: Mechanism used to move the ram.
- Handle/Lever: Used to operate the press manually.
- Anvil: Base plate with holes for supporting workpieces.
Material
- Cast iron frame
- Hardened steel ram and gears
- Steel handle and components
Shape
An Arbor Press has a sturdy C-shaped or rectangular frame with a vertical ram positioned above a flat base or anvil. A long handle is attached to operate the rack and pinion mechanism. The design is compact and suitable for bench mounting.
Safety Precautions
- Ensure proper alignment of the workpiece before pressing.
- Do not apply excessive force beyond the capacity of the press.
- Keep hands away from the ram during operation.
- Secure the press firmly on a workbench.
- Wear safety gloves and goggles.
Conclusion
The Arbor Press is an essential workshop machine used for precise pressing and assembly operations. Its simple design, reliability, and controlled force make it highly useful in fitting and maintenance work.
