Counterbore
Description

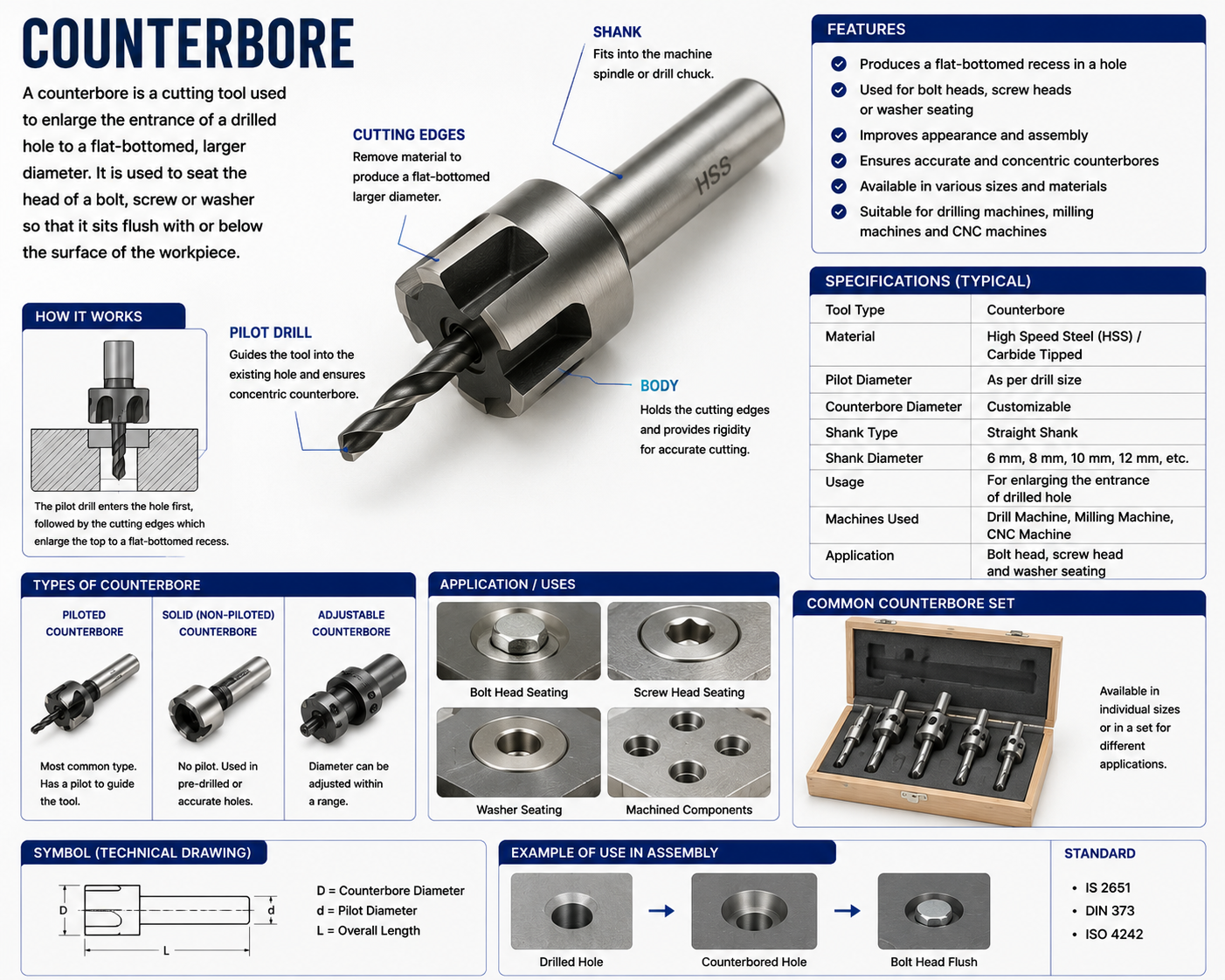

A Counterbore is a cutting tool used to enlarge the top portion of a drilled hole to create a flat-bottomed recess. This allows bolt heads or socket screws to sit flush or below the surface. Counterbores are commonly used in fitting, machining, and assembly operations.
Uses
- Creating flat-bottom recesses in holes.
- Providing space for bolt and screw heads.
- Improving alignment of fasteners.
- Finishing drilled holes.
- Used in drilling and machining work.
Parts of Counterbore
- Pilot: Guides the tool inside the hole.
- Cutting Edges: Remove material to form recess.
- Body: Main cutting portion.
- Shank: Fits into drill chuck or machine.
Material
- High-speed steel (HSS)
- Carbide-tipped tools
- Alloy steel components
Shape
A Counterbore has a cylindrical cutting head with a pilot at the center and a straight shank. The tool creates a flat-bottomed circular recess in the workpiece.
Safety Precautions
- Use correct speed and feed rate.
- Ensure proper alignment with the hole.
- Secure the workpiece firmly.
- Wear safety goggles.
- Keep the tool sharp and clean.
Conclusion
The Counterbore is an essential drilling tool used for creating flat recesses for fasteners. It ensures proper fitting and improves the finish and functionality of assembled parts.
