Belt Grinder
Description
A Belt Grinder is a workshop machine used for grinding, sanding, and finishing metal and other materials using a continuous abrasive belt. The belt rotates over rollers at high speed, allowing efficient removal of material and smooth surface finishing. Belt grinders are widely used in fitting, fabrication, and metalworking industries for shaping and polishing workpieces.
Uses
- Grinding and shaping metal surfaces.
- Smoothing and finishing workpieces.
- Removing burrs and sharp edges.
- Polishing and surface preparation.
- Used in fabrication and workshop operations.

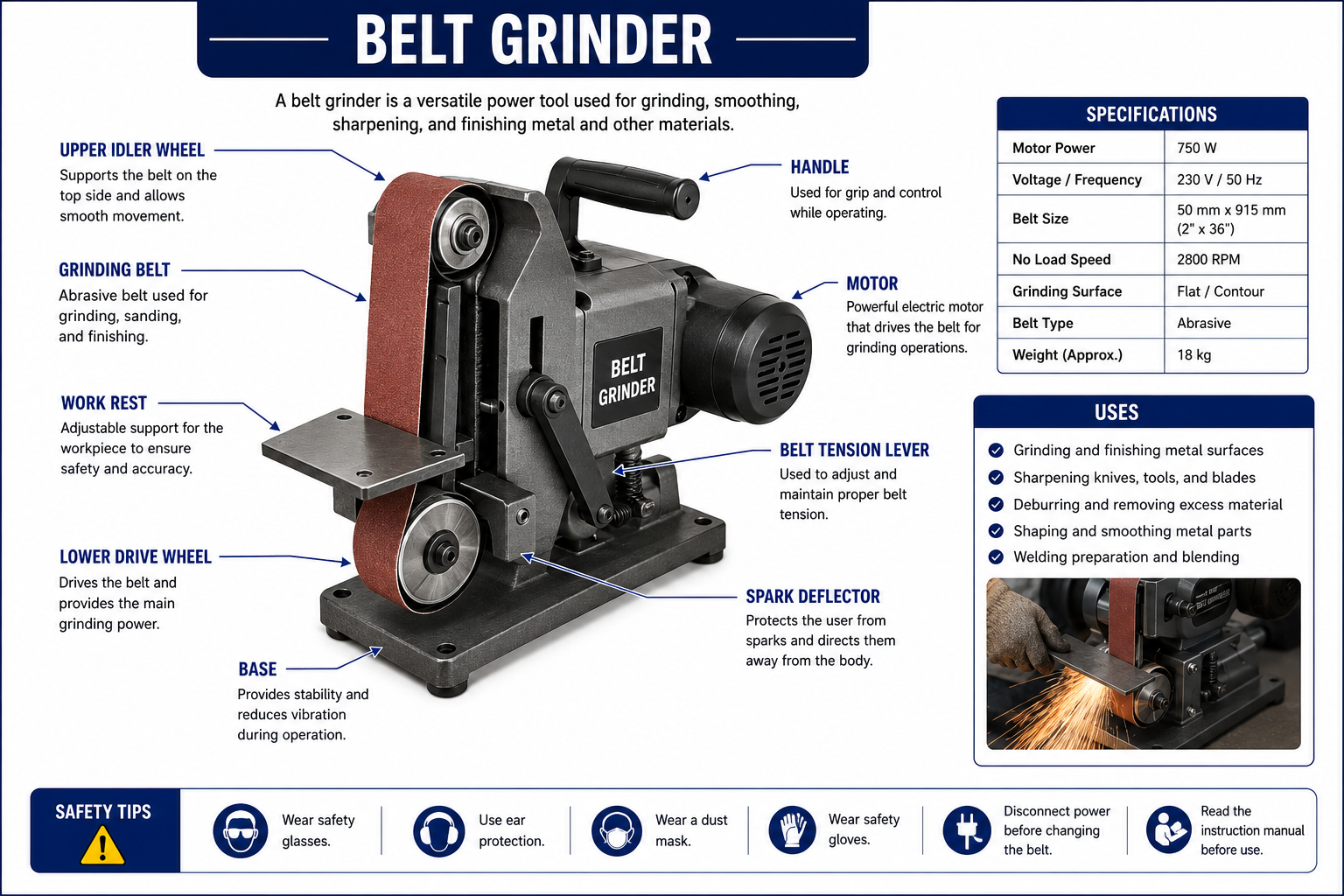

Parts of Belt Grinder
- Abrasive Belt: Performs the grinding operation.
- Drive Motor: Powers the machine.
- Rollers/Pulleys: Support and guide the belt.
- Work Rest: Supports the workpiece during grinding.
- Frame: Provides structure and stability.
- Belt Tension Mechanism: Maintains proper belt tension.
Material
- Steel or cast iron frame
- Abrasive belts (aluminum oxide, silicon carbide, etc.)
- Steel rollers and shafts
- Copper winding in motor
Shape
A Belt Grinder typically has a horizontal or vertical frame with a continuous loop belt running over two or more rollers. It includes a flat working area and a motor mounted on the frame, designed for stable and efficient operation.
Safety Precautions
- Wear safety goggles and protective equipment.
- Ensure proper belt alignment and tension.
- Keep hands away from the moving belt.
- Do not apply excessive pressure.
- Switch off the machine before adjustments.
Conclusion
The Belt Grinder is an essential workshop machine used for grinding and finishing operations. Its efficiency and versatility make it widely used in fitting, fabrication, and industrial applications.
