Center Drill Bit
Description

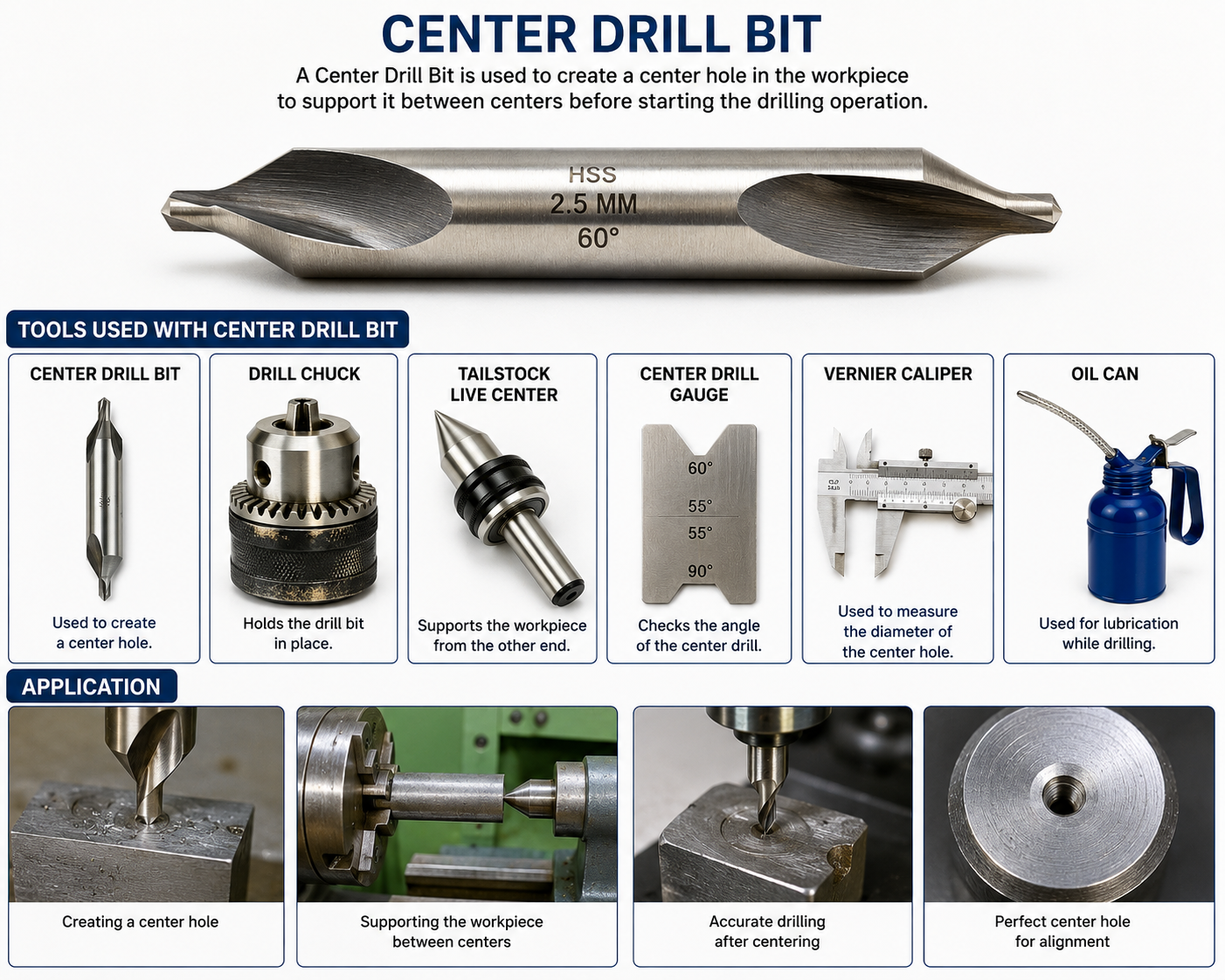

A Center Drill Bit is a short, rigid drilling tool used to create a conical hole or starting point for further drilling operations. It is commonly used in lathe work to make center holes that guide larger drills or support workpieces between centers. This tool helps improve accuracy and prevents drill wandering.
Uses
- Creating center holes in workpieces.
- Providing accurate starting points for drilling.
- Used in lathe operations.
- Preventing drill bit wandering.
- Supporting work between centers.
Parts of Center Drill Bit
- Pilot Tip: Small diameter tip for initial drilling.
- Body: Rigid section for strength.
- Countersink Portion: Creates conical shape.
- Shank: Fits into drill chuck or machine.
Material
- High-speed steel (HSS)
- Cobalt steel (for high performance)
- Hardened cutting edges
Shape
A Center Drill Bit has a short, thick body with a small pilot tip followed by a conical section. This design provides strength and accuracy during drilling operations.
Safety Precautions
- Use proper speed and feed rate.
- Secure the workpiece firmly.
- Wear safety goggles.
- Avoid excessive pressure.
- Keep the tool sharp and clean.
Conclusion
The Center Drill Bit is an essential drilling tool for accurate and precise hole positioning. It improves machining quality and is widely used in fitting and lathe work.
