C Clamp
Description
A C Clamp is a hand tool used to hold or secure objects firmly together during operations such as welding, gluing, drilling, or assembly. It is named after its C-shaped frame, which allows it to apply strong clamping force using a threaded screw mechanism. C clamps are widely used in fitting, woodworking, and metalworking tasks.
Uses
- Holding workpieces securely during operations.
- Clamping materials for welding or gluing.
- Supporting parts during drilling or cutting.
- Assembly and fabrication work.
- Used in workshops and maintenance tasks.

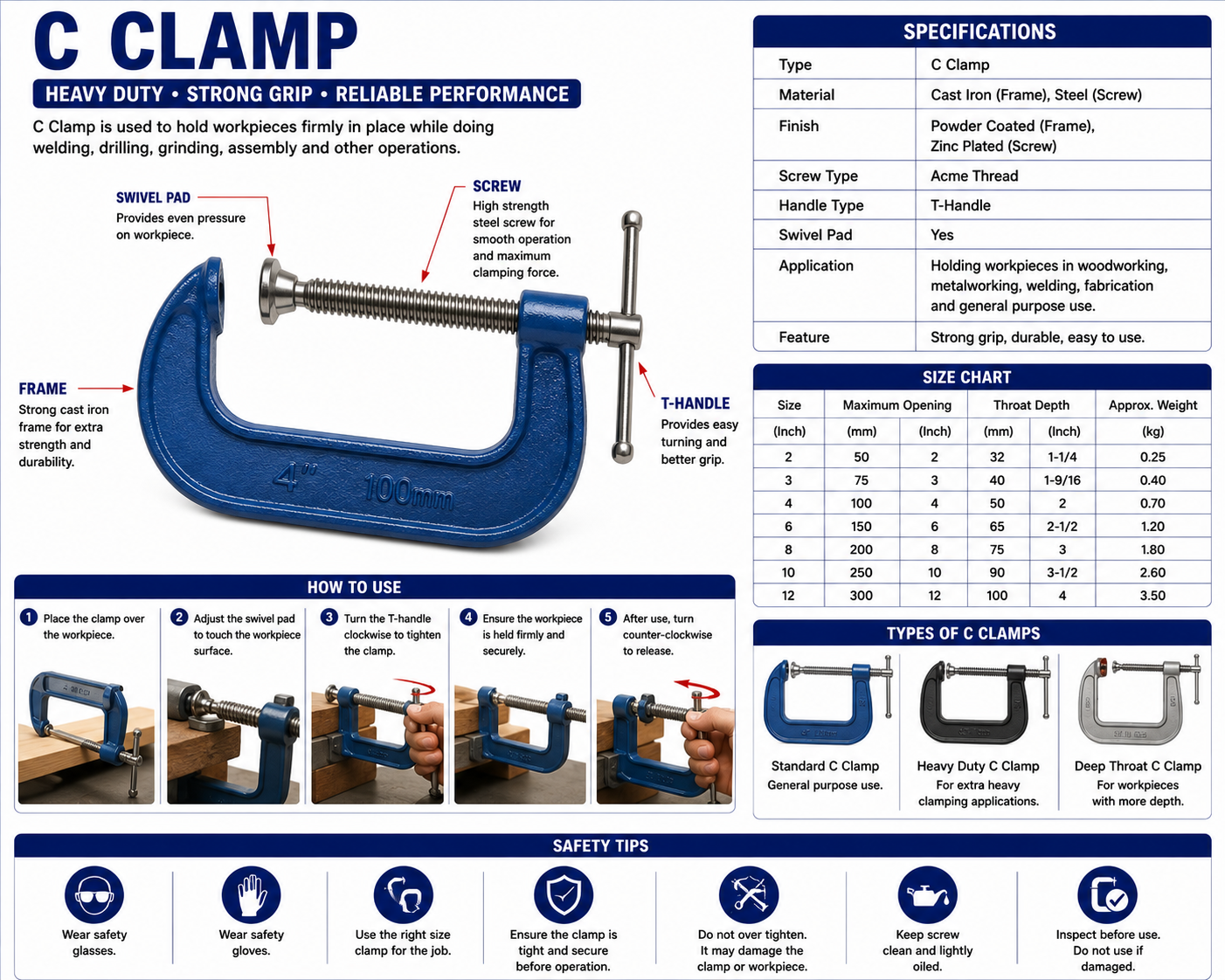

Parts of C Clamp
- Frame: C-shaped body providing structure.
- Screw/Spindle: Applies clamping pressure.
- Swivel Pad: Distributes pressure evenly on the workpiece.
- Handle: Used to turn the screw.
Material
- Cast iron or forged steel frame
- Hardened steel screw
- Steel swivel pad
Shape
A C Clamp has a C-shaped frame with a threaded screw passing through one end. The screw moves forward or backward to apply pressure, holding the workpiece securely in place.
Safety Precautions
- Ensure proper positioning before tightening.
- Do not over-tighten to avoid damage.
- Check the clamp for cracks or wear.
- Keep hands clear while tightening.
- Use the correct size clamp for the job.
Conclusion
The C Clamp is a versatile and essential hand tool used for clamping operations in workshops. Its simple design and strong grip make it highly useful in fitting, woodworking, and fabrication work.
