Bench Grinder
Description
A Bench Grinder is a workshop machine used for grinding, sharpening, and finishing metal tools and components. It consists of one or two abrasive grinding wheels mounted on a motor-driven shaft. Bench grinders are commonly used in fitting and fabrication work for shaping, deburring, and tool maintenance.
Uses
- Sharpening cutting tools such as chisels and drills.
- Grinding and shaping metal parts.
- Removing burrs and rough edges.
- Polishing and finishing surfaces.
- General maintenance work in workshops.

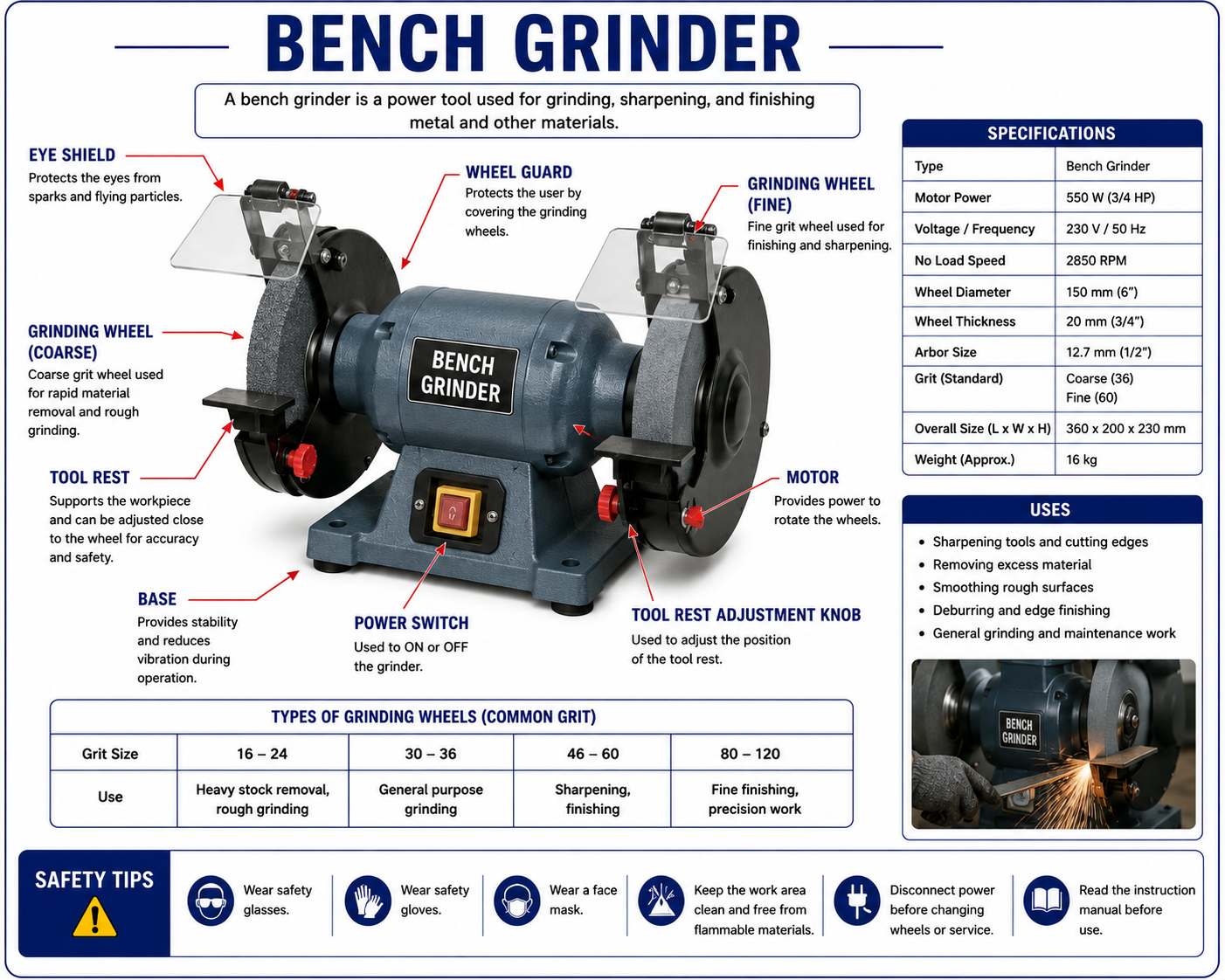

Parts of Bench Grinder
- Grinding Wheels: Perform grinding operations.
- Motor: Drives the grinding wheels.
- Wheel Guard: Protects the user from sparks and debris.
- Tool Rest: Supports the workpiece during grinding.
- Eye Shield: Provides additional safety.
- Base: Supports the machine on the bench.
Material
- Cast iron or steel body
- Abrasive wheels (aluminum oxide, silicon carbide)
- Steel shaft and components
- Copper winding in motor
Shape
A Bench Grinder has a compact horizontal design with grinding wheels mounted on both sides of a central motor. It is fixed on a workbench and includes safety guards and tool rests for controlled operation.
Safety Precautions
- Wear safety goggles and protective gear.
- Ensure wheel guards are in place.
- Do not use damaged grinding wheels.
- Maintain proper distance between tool rest and wheel.
- Switch off the machine before adjustments.
Conclusion
The Bench Grinder is an essential workshop machine used for grinding and sharpening operations. Its efficiency and versatility make it widely used in fitting, fabrication, and maintenance work.
