Chip Conveyor System
Description
A Chip Conveyor System is a workshop machine used to collect and transport metal chips produced during machining operations. It helps maintain a clean working environment by automatically removing chips from machines such as lathes, milling machines, and CNC machines. This system improves efficiency, safety, and productivity in workshops and manufacturing units.
Uses
- Removing metal chips from machines.
- Maintaining cleanliness in workshops.
- Improving machine efficiency and productivity.
- Handling waste material in machining processes.
- Used in CNC and automated machining systems.

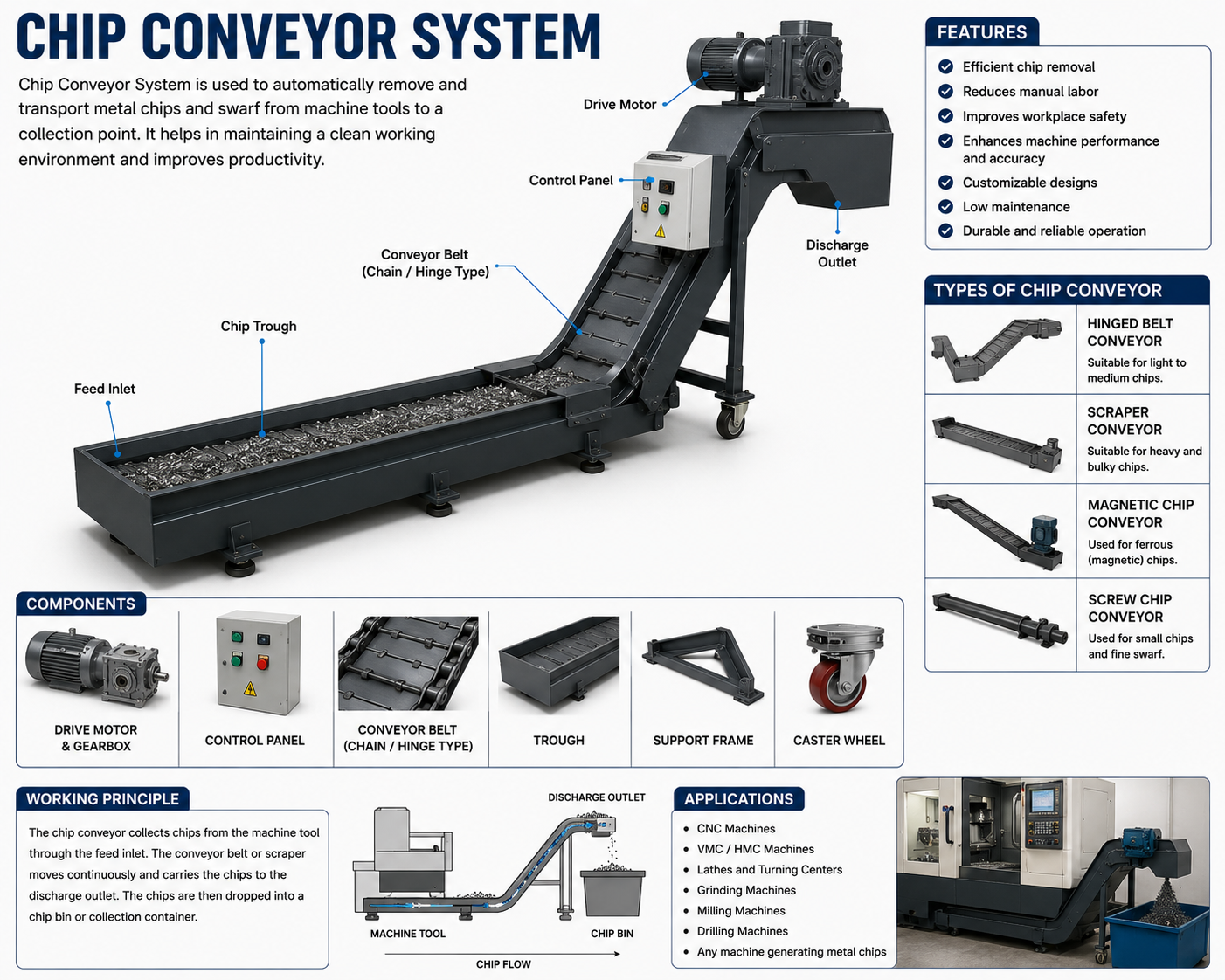

Parts of Chip Conveyor System
- Conveyor Belt/Chain: Transports chips.
- Drive Motor: Powers the conveyor.
- Frame: Supports the system structure.
- Collection Bin: Stores removed chips.
- Control Panel: Operates the system.
Material
- Steel or stainless steel frame
- Metal conveyor chains or belts
- Electric motor components
Shape
A Chip Conveyor System typically has a long, inclined or horizontal structure with a moving belt or chain. It is installed alongside machines to continuously carry chips to a collection area.
Safety Precautions
- Keep hands away from moving parts.
- Ensure proper guarding of the conveyor.
- Switch off the system before maintenance.
- Wear protective gear during operation.
- Regularly inspect for wear and damage.
Conclusion
The Chip Conveyor System is an essential workshop equipment for maintaining cleanliness and efficiency in machining operations. It enhances productivity and ensures a safer working environment.
