Bar Clamp
Description
A Bar Clamp is a hand tool used to hold workpieces firmly together during operations such as gluing, welding, or assembly. It consists of a long bar with a fixed jaw at one end and a movable jaw that can be adjusted along the bar. Bar clamps are widely used in woodworking, metalworking, and fitting work to ensure stability and accuracy.
Uses
- Holding workpieces during gluing and assembly.
- Clamping materials for welding or drilling.
- Securing parts for cutting or shaping.
- Maintaining alignment of components.
- Used in woodworking and metalworking tasks.

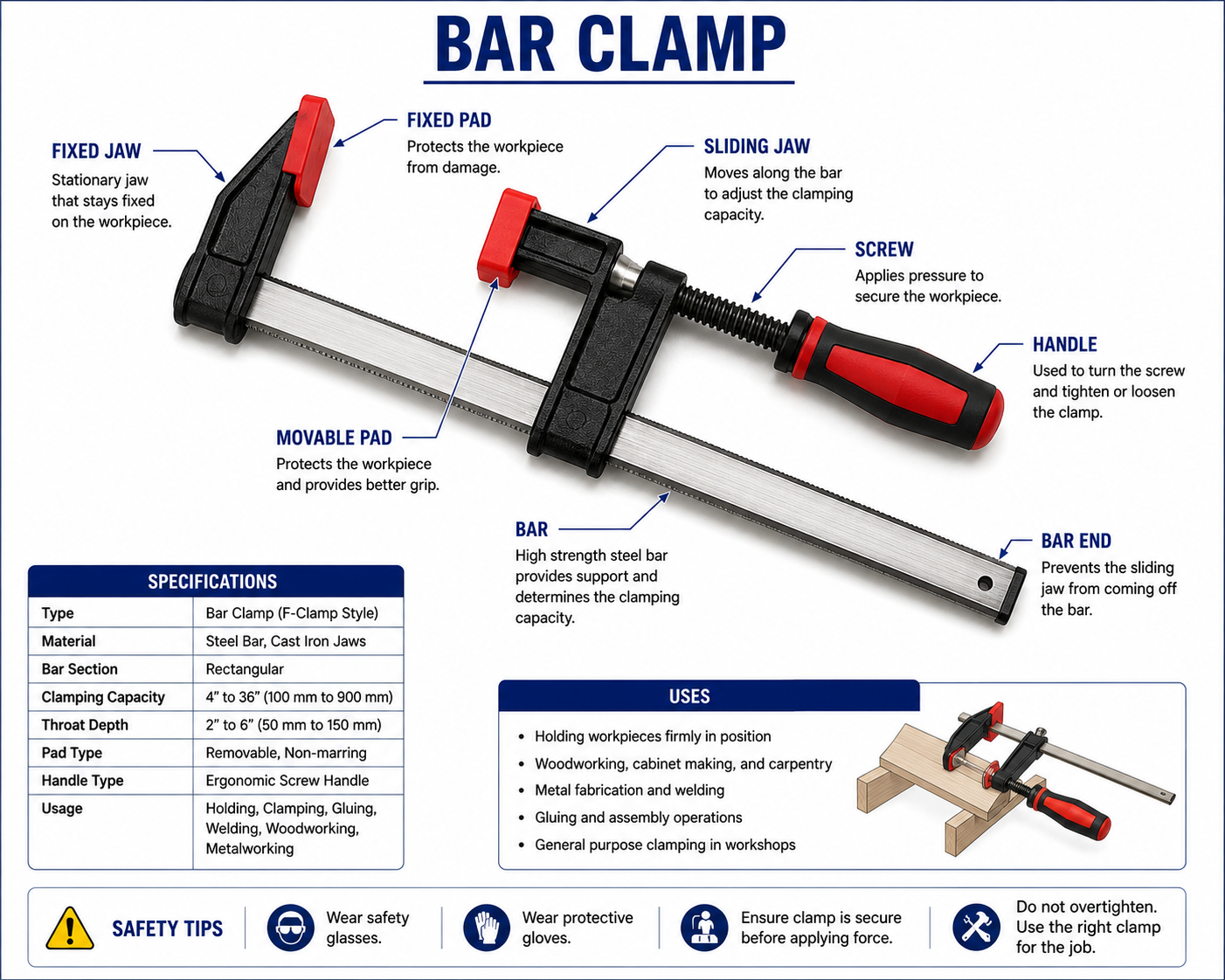

Parts of Bar Clamp
- Bar: Long metal rail that supports the clamp.
- Fixed Jaw: Stationary end that holds one side of the workpiece.
- Movable Jaw: Adjustable jaw that slides along the bar.
- Spindle/Screw: Tightens the clamp to apply pressure.
- Handle: Used to turn the screw mechanism.
Material
- Steel bar
- Cast iron or steel jaws
- Hardened steel screw
- Plastic or wooden handle
Shape
A Bar Clamp has a long straight bar with jaws at both ends. One jaw is fixed while the other moves along the bar. The screw mechanism allows the user to tighten the clamp and apply pressure to the workpiece.
Safety Precautions
- Ensure proper alignment before tightening.
- Do not apply excessive force.
- Check the clamp for damage before use.
- Keep hands clear while tightening.
- Store properly after use to avoid damage.
Conclusion
The Bar Clamp is an essential clamping tool used to hold workpieces securely during various workshop operations. Its adjustable design and strong grip make it highly useful in fitting, woodworking, and fabrication work.
