Bench Drill
Description
A Bench Drill, also known as a Bench Drilling Machine, is a workshop machine used for drilling precise holes in metal, wood, and other materials. It is mounted on a workbench and operates using an electric motor that rotates the drill bit at controlled speeds. Bench drills are widely used in fitting, fabrication, and manufacturing for accurate and repeatable drilling operations.
Uses
- Drilling holes in metal, wood, and plastic.
- Performing precise and accurate drilling operations.
- Reaming, tapping, and countersinking work.
- Used in workshops and fabrication units.
- Production and maintenance tasks.

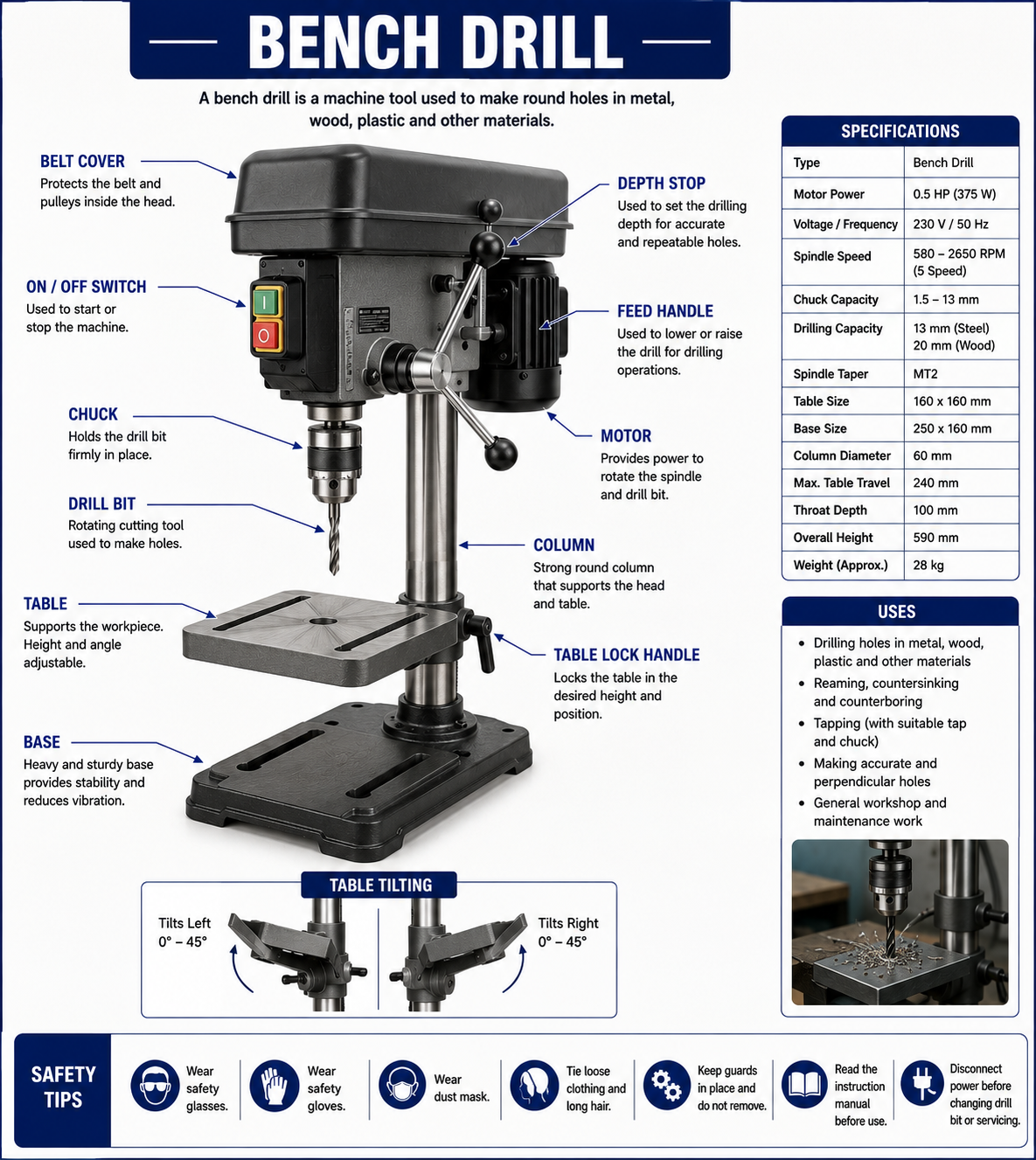

Parts of Bench Drill
- Base: Supports the entire machine.
- Column: Vertical support connecting parts.
- Table: Holds the workpiece.
- Spindle: Rotates the drill bit.
- Chuck: Holds the drill bit.
- Motor: Provides power.
- Feed Handle: Moves the drill bit vertically.
Material
- Cast iron base and column
- Steel spindle and chuck
- Copper winding in motor
- Metal table and components
Shape
A Bench Drill has a vertical structure with a base, column, and adjustable table. The motor is mounted on top, and the drill bit is positioned vertically above the workpiece. It is compact and designed for bench mounting.
Safety Precautions
- Secure the workpiece properly before drilling.
- Do not wear loose clothing near moving parts.
- Use appropriate drill speed and bit.
- Wear safety goggles.
- Switch off the machine before adjustments.
Conclusion
The Bench Drill is an essential workshop machine used for accurate and efficient drilling operations. Its precision and ease of use make it widely used in fitting, fabrication, and industrial applications.
