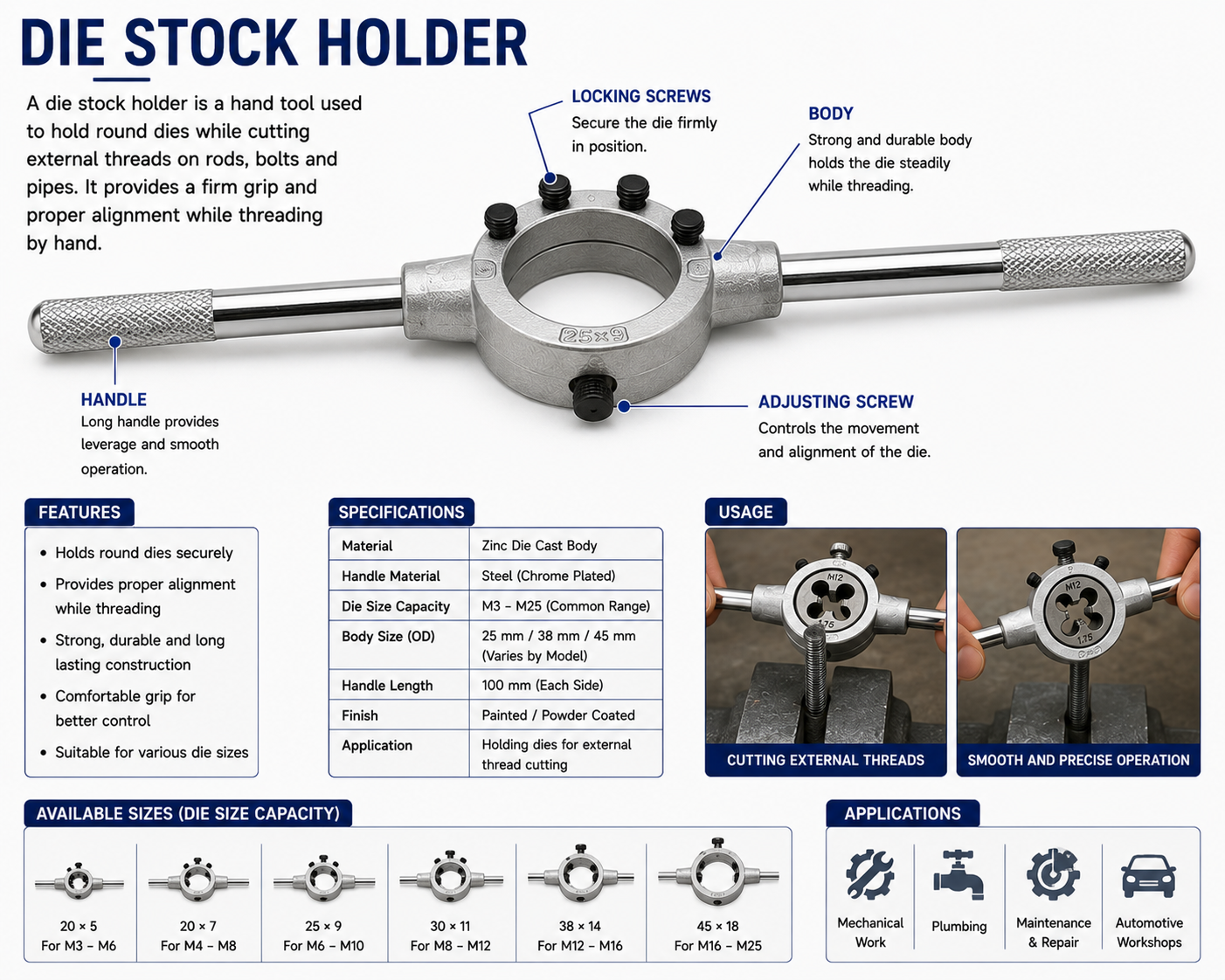

Die Stock Holder
Description
A Die Stock Holder is a hand tool used to hold and rotate a threading die for cutting external threads on rods, bolts, or pipes. It provides proper alignment and control during threading, ensuring accurate and uniform thread formation.
Parts
- Body: Circular frame that holds the die.
- Handles: Provide grip and leverage for rotation.
- Clamping Screws: Secure the die in position.
- Guide Slot: Ensures proper alignment of the die.
Material
- Cast Iron or Steel Body
- Alloy Steel Handles
Uses
- Holding dies for thread cutting
- Cutting external threads on rods and pipes
- Fitting and machining work
- Maintenance and repair operations
Safety
- Ensure die is properly fixed before use.
- Use cutting oil for smooth threading.
- Maintain correct alignment with the workpiece.
- Do not apply excessive force.
- Clean and store properly after use.
